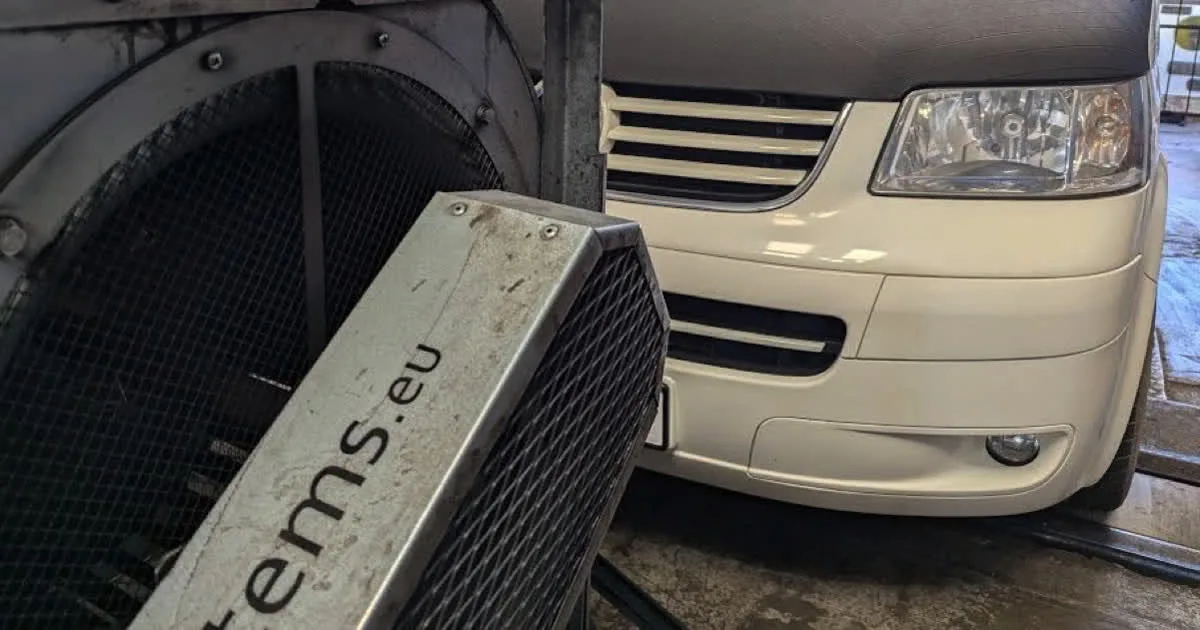

This 2005 VW T5 1.9 TDI 104 bhp came in for a Pendle Performance remap. On the dyno it produced 89 bhp and 225 Nm of torque in standard form. After calibration it left with 128 bhp and 313 Nm.
The numbers tell part of the story. The torque curve tells the rest.
When the Badge Says 104 bhp but the Dyno Says 89
This is more common than people think, especially on older 1.9 vans.
On paper this model is a 104 bhp. On the rolling road it showed 89 bhp. That gap can be down to age, wear, software versions, previous work, or simply how conservatively these engines were set up from factory.
Manufacturers build vehicles to work everywhere. Different climates. Different fuels. Different emissions targets. That means many UK vans are running well below their potential.
And when a van has been working hard for 20 years, you can feel that loss of sharpness. Slower pull away. More gear changes on hills. Overtaking that needs planning.
That is usually when people start looking into a proper remap.
What We Actually Did
We carried out a full dyno health check first. No guessing. No plug-in box. No generic file.
As a long-standing authorised agent for Pendle Performance, we work with OEM software calibration, not copied files. Every map is written and tested properly, with safety and reliability in mind Pendle Performance Remapping.
Once we confirmed the van was mechanically sound, we recalibrated the factory ECU tables. That includes boost control, fuel delivery, torque modelling and throttle response. All adjusted within safe operating limits.
We quote typical gains of around 35 bhp and 60 Nm on this engine.
This one did better.

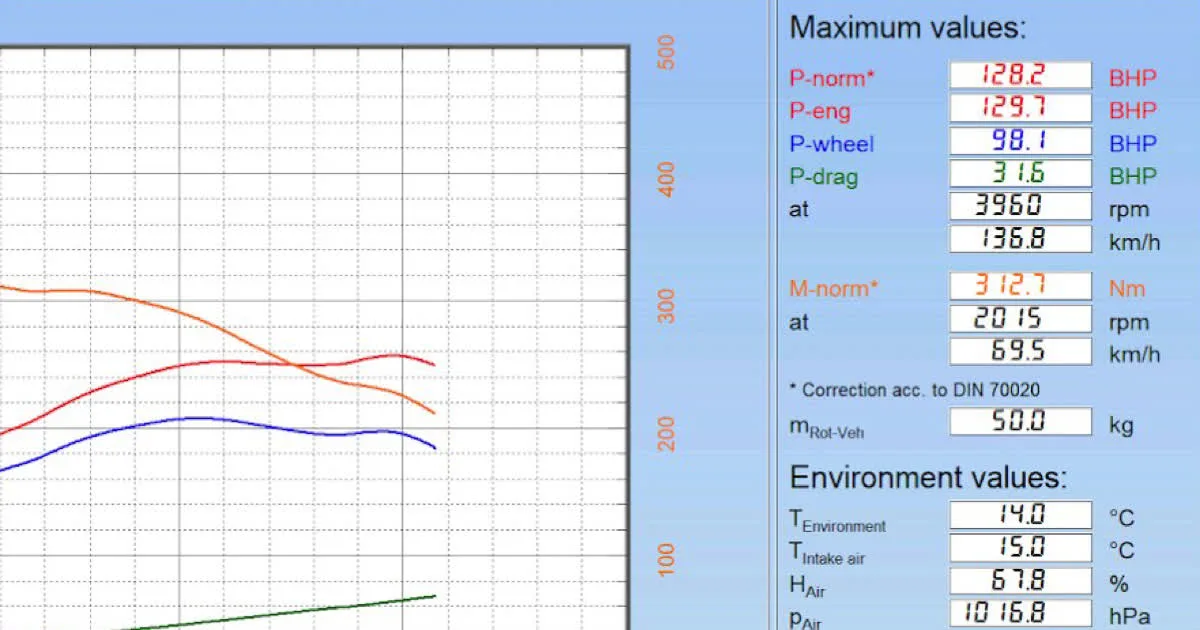

Final results:
- 128 bhp
- 313 Nm of torque
Volkswagen T5
1.9 TDI 104That is a gain of 39 bhp and 88 Nm.
More importantly, the torque curve is clean and smooth. No spikes. No nasty surges. Just strong, usable mid-range pull. You will not see many 1.9 vans with a curve that tidy.
It is worth noting, this started lower than expected. So even though the final figure might look smaller than some other 1.9 results online, the real-world gain is significant.
How It Feels on the Road
Numbers are useful. But you drive torque, not graphs.
An extra 88 Nm transforms how these vans move. Pulling away feels lighter. Hills need fewer downshifts. Overtaking is safer because the power is there when you ask for it.
This is why so many owners say it feels like a different van afterwards. You can read the feedback yourself from the hundreds of customers who have experienced similar results Humanise Writing.
We are also the only remapping company in the UK listed as a Which Trusted Trader. That matters. Especially in an industry where not everyone uses proper calibration methods.
Booking and Current Offer
A Pendle remap here at TH Performance starts at £349 all in.
You can save 10 percent by using code WEBSITESPECIAL when booking online.
Booking is simple. Visit the bookings page, choose the option that suits you, select a date, and the system handles the rest.
If you are curious what your vehicle could achieve, Pendle also provide a searchable vehicle database with example dyno graphs and model information Pendle Performance.
If you prefer to speak first, send us a direct message. We would rather answer properly than have you guessing.
Thinking About a Remap? Questions People Ask:
Is remapping safe on a 2005 VW T5 1.9 TDI?
Yes, provided the van is mechanically healthy and the calibration is written properly. We carry out a dyno health check first and only proceed if everything is operating correctly. The map stays within safe boost and temperature limits for long term reliability.
Will the extra torque damage my clutch or gearbox?
The increase is progressive rather than aggressive. On a healthy drivetrain the added torque is well within what these components are designed to cope with. If we see signs of clutch slip or weakness during testing, we will advise before mapping.
Why did my van only make 89 bhp when it is meant to be 104 bhp?
Factory figures are measured under controlled conditions on new vehicles. Age, mileage, wear and previous maintenance can all affect real world output. That is why we test your van as it arrives rather than assuming anything.
Is £349 worth spending on an older van?
If you plan to keep the van, most owners say the improvement in drivability makes it worthwhile. The stronger mid range torque means fewer gear changes and easier overtaking. Compared to hardware upgrades, ECU recalibration is relatively cost effective.
Do I actually need a remap?
No. The van will run perfectly well in standard form. A remap simply improves how it delivers power and torque, especially if you tow, carry weight, or feel it struggles on hills. It improves usability rather than being a necessity.
